Acoustics

Wave is the Australian distributor of PhoneStar — a German-engineered soundproofing board used in floors, walls and ceilings to cut both impact and airborne noise.

PhoneStar by Wave

A heavy, honest board that quiets the rooms it's built into.

PhoneStar is a dense acoustic panel made from corrugated cardboard cells filled with kiln-dried quartz sand. The mass does the work — converting sound energy into heat as it passes through the board.

It's been used across Europe for over twenty years in residential construction, multi-storey apartments and high-end media rooms. Wave brings it to Australia through a national network of acoustic and flooring retail partners.

Made in Germany · From recycled cardboard and quartz sand.

How it works

Mass, not foam.

Most acoustic products rely on soft foam to absorb sound. PhoneStar takes the opposite approach — a heavy, dense board that physically blocks sound from transmitting through the structure.

  • 01 — Cellular structure

    Two outer layers of dense, recycled corrugated cardboard form a rigid, honeycomb-style cell matrix that holds everything together.

  • 02 — Kiln-dried quartz sand

    Each cell is filled with kiln-dried quartz sand. The sand adds mass (~17 kg/m²) and absorbs vibration as sound moves through the panel.

  • 03 — Energy converted to heat

    The combination of mass and damping converts airborne and impact sound energy into tiny amounts of heat — instead of letting it pass through to the next room.
Recycled corrugated cardboard
Quartz sand fill — ~17 kg/m²
Cellular cardboard matrix
Quartz sand fill
Recycled corrugated cardboard

A 15mm board that performs like 90mm of conventional build-up.

PhoneStar achieves significant Rw improvements in just 15mm of build height — critical when retrofitting existing floors and ceilings where you can't lose room height.

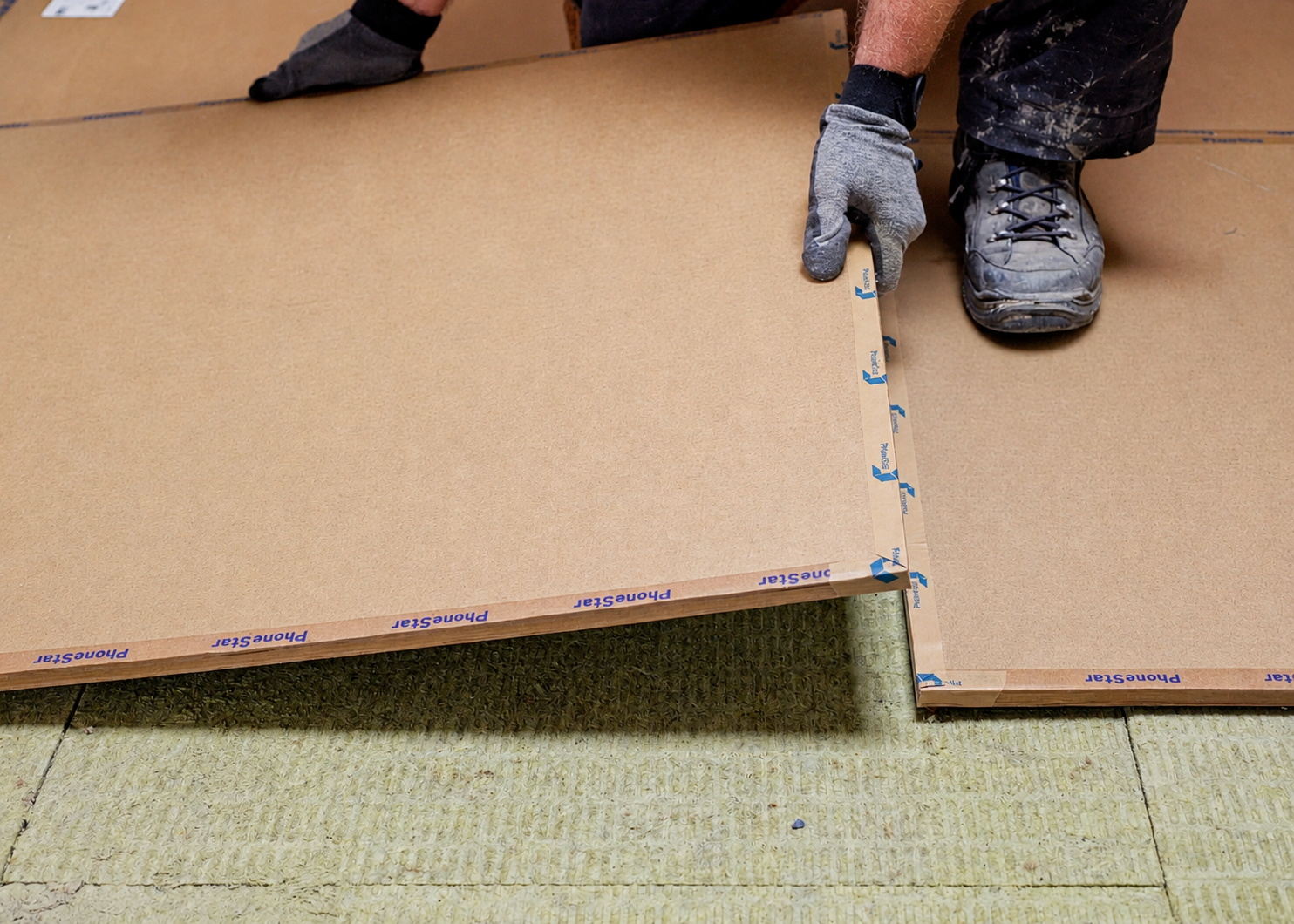

Tongue and groove edges interlock without fasteners, and the board cuts cleanly with a standard handsaw or jigsaw — no specialist tools, no dust extraction rigs.

Use cases

Where PhoneStar goes in.

PhoneStar installs into floors, walls and ceilings — in new builds, renovations and retrofits. A short list of the projects we see it specified into most often.

  • Apartments & townhouses

    Impact noise between floors is the most common complaint in multi-storey living. PhoneStar laid under timber or tile reduces footfall and dropped-object noise to the unit below.

  • Home theatres & media rooms

    Used in walls and ceilings to contain low-frequency content from subs and surrounds, keeping movie-night out of the kids' bedrooms upstairs.

  • Recording & podcast studios

    Combined with absorption inside the room, PhoneStar provides the structural isolation a studio needs — stopping street noise getting in and tracking getting out.

  • Home offices & study nooks

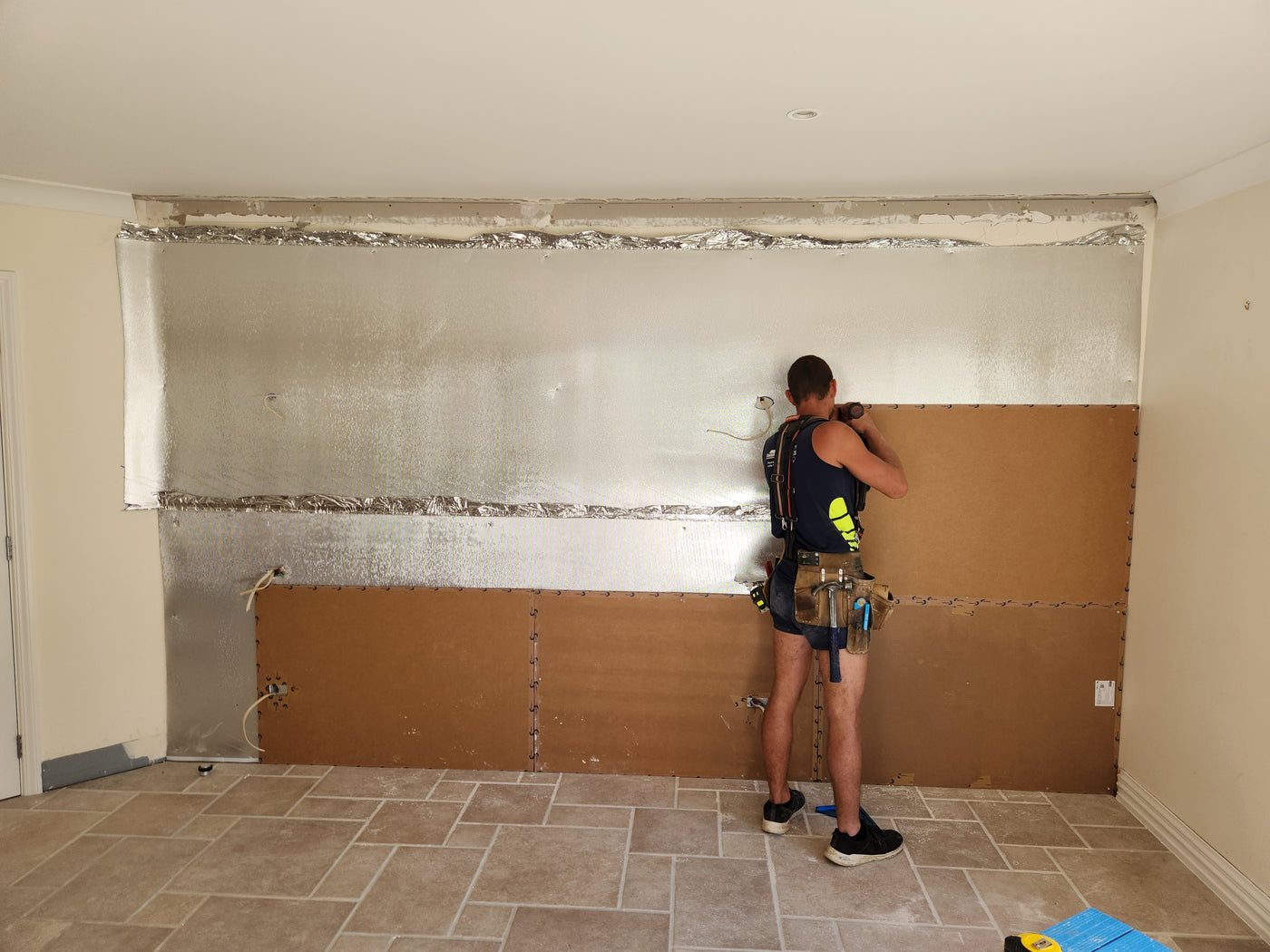

    Walls between an office and a shared living space, or between two work-from-home rooms, get a noticeable lift in privacy with a single layer of PhoneStar.

  • Hotels & short-stay

    Specified into wall and floor systems to hit Rw targets in hospitality fit-outs where guest experience is non-negotiable.

  • Renovations & retrofits

    Thin enough (15mm) to add to an existing floor without losing meaningful head height — ideal for character-home and warehouse-conversion projects.

Tech & specification

Engineered, tested, certified.

PhoneStar has been independently tested across European labs for over two decades. Wave can supply Rw test data, system specifications and CAD details for architects and acoustic consultants on request.

  • Impact & airborne noiseReduces both footfall (impact) and voice/TV (airborne) transmission.
  • Thin profileJust 15mm thick — retains room height in retrofits.
  • Tongue & grooveInterlocking edges — no special fasteners, fast install.
  • Cuts with a handsawNo specialist tools or dust extraction required on site.
  • Recycled coreMade from recycled corrugated cardboard and quartz sand.
  • System-testedFull system specifications available for architects & acoustic consultants.
Key specification — PhoneStar Triple
Thickness 15 mm
Panel size 1200 × 800 mm
Mass per area ~17 kg/m²
Edge profile Tongue & groove on 4 sides
Core Recycled cardboard + quartz sand
Origin Manufactured in Germany
Rw improvement Up to +13 dB (system-dependent)
Application Floors, walls, ceilings

Rw values are system-dependent. Wave supplies full test reports and certified system build-ups on request.

Specifying a project, or fitting out your own home?

Wave supplies PhoneStar through a national network of specialist retail partners. They hold physical samples, can review your project, and arrange supply direct to site.

Find a Retail PartnerRequest specifications
